High Pressure Storage Cylinder Lift Racks

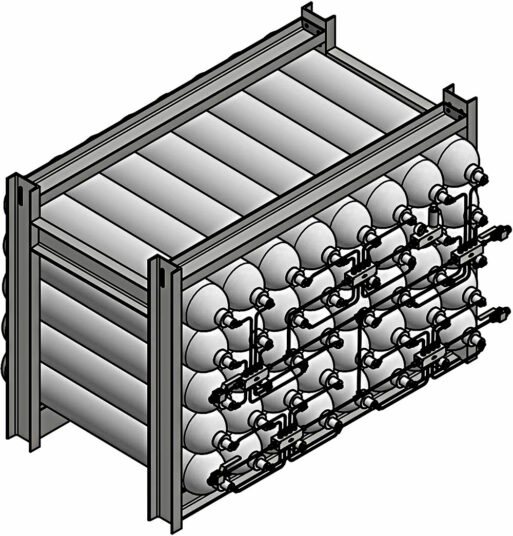

Air Storage Cylinder Lift Rack 2000-500 40x50 Liter Cylinders
Models | Volume | Approx. Capacity @ Working Pressure | Dimensions inch-cm LxDxH | Weight kg-lbs |
|---|---|---|---|---|
ASCLR2000-500 | 2000 Liter (40×50 Liter) | 1000m3/35320cft@500bar/7250psi | 85″-216x68”-173x67”-170 | 10500-23100 |
Standard Features
- Storage Lift Rack Heavy Duty
- Construction Durable, steel frame
- High pressure, Breathing air storage system with forty (40) 50 liter 500bar/7250psi cylinders
- Working Pressure 500bar/7250psi
- Test Pressure 750bar/10875psi
- Pressure Equipment Directive PED CE certified
- Seamless Steel Gas Cylinder according EN ISO 9809-2
- High Pressure INOX Panels with four connections G1/2“
- Safety Pressure Valve 510bar/7395psi (as option)
- Storage pressure gauge 0-600bar/8700psi (as option)
- TÜV Certificate according EC Directive 97/23/EC regulations AD 2000
Factory Options ASCLR2000-500 Air Storage Cylinder Lift Rack
Models | Description |
|---|---|
BSS | High Pressure INOX Filling Panel with connection G1/2“ |
SV3/4 | Safety Pressure Valve 510bar/7395psi |
PG600 | Storage pressure gauge 0-600bar/8700psi |
SOV | Shut-off lever valve 500 bar |
OXY | Applications for Argon, Helium, Nitrogen |
