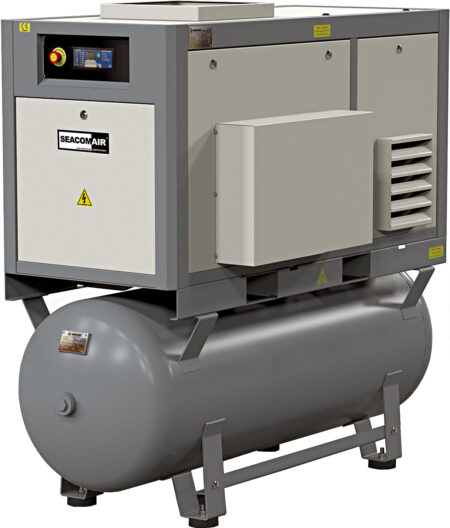

SCA-TKW1700-13-500 Screw Compressor

Models	Motor	Charging Rate	Max. Pressure	Dimensions LxDxH	Weight	Noise
Low Pressure Screw	Electric	L/min - cfm - m³/hr	Bar - psi	inch - cm	kg - lbs	dB (ISO3746)
SCA-TKW1700-13-500	15kW 400V/50Hz 3Ph	1700 - 60 - 102	13 - 188	79”(202)x33”(85)x65”(165)	520 - 1144	70

Free Air delivery 1700 l/min = 1,7 m³/min @ 13 bar
Electric Motor Insulation class F
Degree of protection IP 55
Design IE3 B35
Oil-injected screw compressors with belt drive
Air-cooled, Single-stage, Oil-injected with Air-cooled and compressed air aftercooler
Long-term separator cartridge for constant Cooling residual content of 2-4 mg/m³
TÜV certified block, lubricants cooler, filter and thermal block
Integrated centrifugal separator with el. Condensate drain
Ambient Temperature Min./Max. +0/+45°C
Compressed air outlet temperature 10-12°C over ambient
Integrated Compact fan, 0.4 kW, 3500 m³/h
Air Receiver/Tank 500 liters including all safety-relevant parts AD 2000
Cabinet degree protection IP 54
Large removable service doors, optimum accessibility to all components
Cooling air outlet to the top, no heat accumulation at standstill possible (chimney effect)
Compressor works fully automatically with full load
Oil temperature display with switch-off function
On / Off switch, emergency stop button
Ball valve for the air-side connection
Shock-absorbing system with four attachment points
Quality Made in Germany

Single-stage, Air cooled compressor unit
Vibration damper
LCD Control Display with all-important operating conditions, Plant in operation/ Standby / Load Test, Remote closing active, Automatic Restart, Final compression pressure, Final compression temperature
Pressure Oulet R3/4”
Ready mounted and wired

Models	Description
AD	Compressed air Refrigerant Dryer
VSD	Energy efficient Speed Drive Control System

SeaComAir Low Pressure Screw Compressors are industrial compressors for stationary operations.
