Heavy Duty Low Pressure Screw Air Compressor for heavy sized compressed air requirements in industrial use


SeaComAir ORPSR5000-15 Screw Compressor Electric

SeaComAir ORPDSR1900-15-250 Screw Compressor with AR Air Receiver 250 Liter Volume

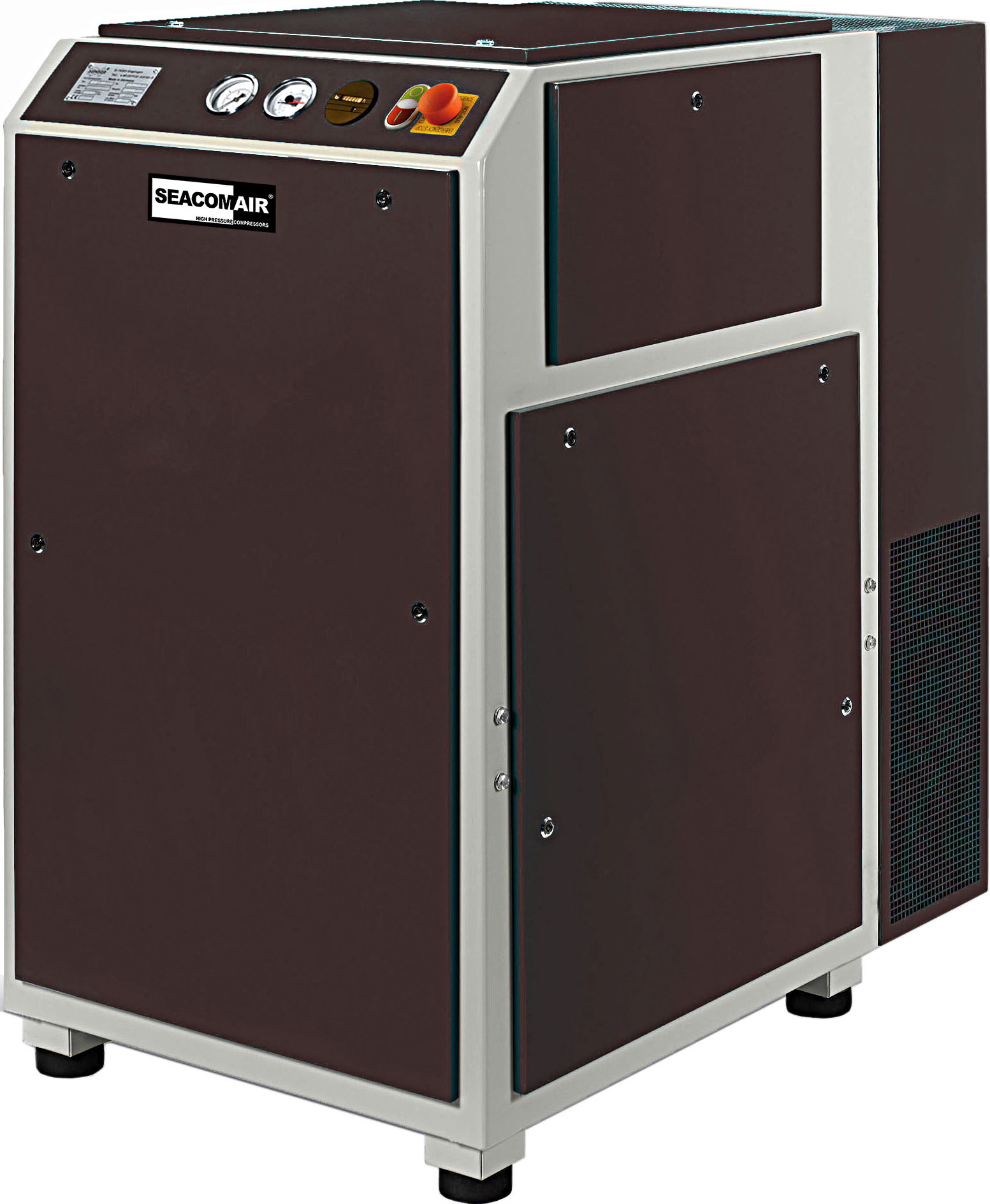

SeaComAir ORPSR5000-15 Screw Compressor

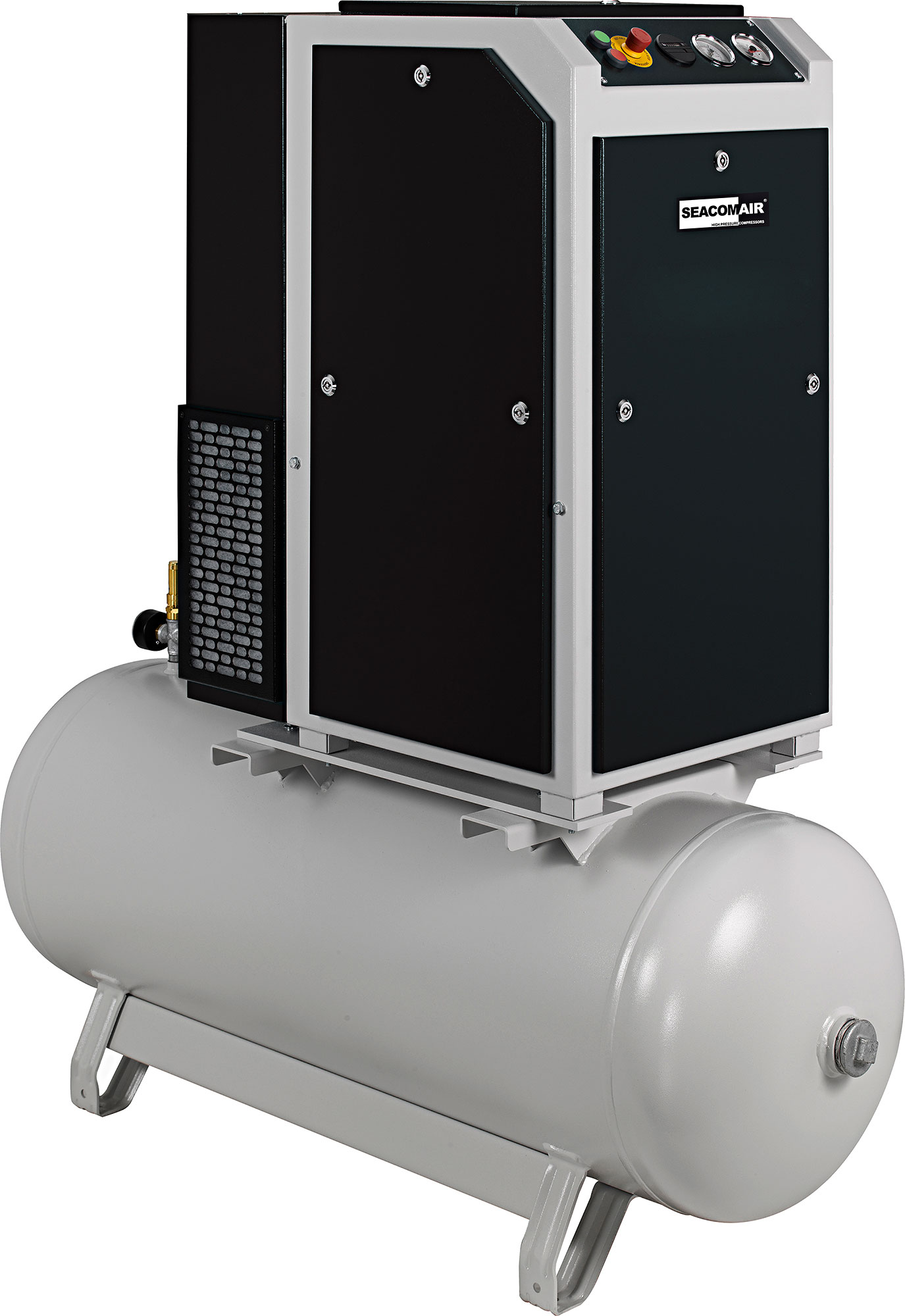

SeaComAir ORPDSR1700-15-250 Screw Compressor
Models
Motor
Charging Rate
Max. Pressure
Dimensions LxDxH
Weight
Noise
Low Pressure Screw

Electric

L/min – cfm – m³/hr

Bar – psi

inch – cm

kg – lbs

dB (ISO3746)

SCA-ORPSR5000-15

45kW 400V/50Hz 3Ph

5000 – 176 – 300

15 – 2175

72”(183)x35”(88)x69”(176)

1022 – 2248

77

Standard Features

Specifications

  • Free Air delivery 1900 l/min/67 cfm/114 m3/h up to 5000 l/min/176 cfm/300 m3/h @ 15 bar
  • Oil-injected screw compressors with belt drive
  • Electric Motors 18,5 kW up to 45 kW
  • Air-cooled, Single-stage, Oil-injected screw compressor
  • Continuous operation for industrial use
  • Intensive cooling combined with an effective after cooler
  • High-performance compact air on end
  • Integrated oil control valve
  • Self-tensioning V-belt using pivoting motor base
  • Motor protection switch, Star-delta switch
  • Torsion-resistant steel frame and housing
  • Large removable service doors, optimum accessibility to all components
  • Thermostatic oil control, for optimum operating temperature
  • Large dimensioned combi cooler for compressed air and oil
  • Cooling air outlet to the top, no heat accumulation at standstill possible (chimney effect)
  • All air and oil lines are made of metal with high quality precision hydraulic fittings
  • Compressor works fully automatically with full load
  • Oil temperature display with switch-off function
  • On / Off switch, emergency stop button
  • Ball valve for the air-side connection
  • Shock-absorbing system with four attachment points
  • Effective sound insulation box
  • Multiple bearings on vibration metals enable low-noise and low-vibration installation
  • Compact design, therefore lower space requirement
  • Quality Made in Germany
  • Single-stage, Air cooled compressor unit
  • Vibration damper
  • Automatic star-delta protection
  • Hour Meter
  • Pressure Oulet G1/2”
  • Ready mounted and wired

Factory Options

Models
Description
LCDD

Electronic control system with LCD Display

PC

Phase Controller via phase sequence relay

AD-CD

Air Dryer with Level Controlled Condensate Drain

AR

Air Receiver from 90 to 500 Liter (19-132 Gallon) with Level Controlled Condensate Drain

VFD

Energy efficient Frequency Drive Control System

SeaComAir Low Pressure Screw Compressors are industrial compressors for stationary operations.
