High Pressure Storage Cylinder Lift Racks


Air Storage Cylinder Lift Rack 300-350 6×50 Liter

Air Storage Cylinder Lift Rack 600-350 12×50 Liter

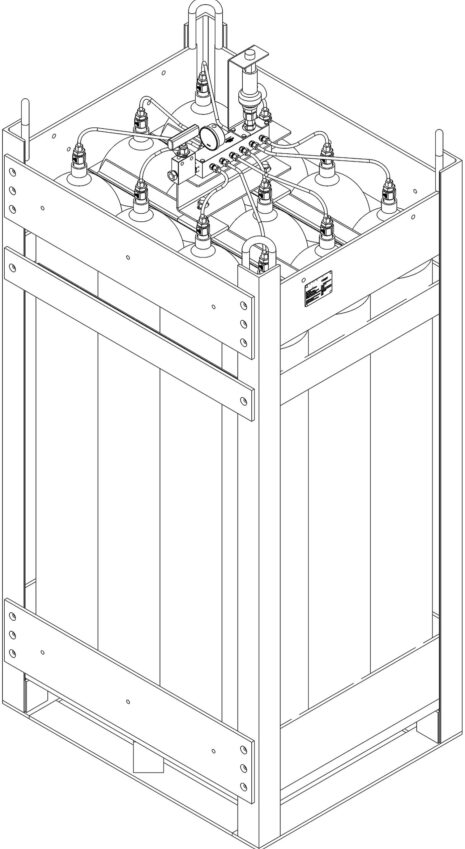

ASCLR300-350 Air Storage Lift Rack
ASCLR600 Air Storage Cylinder Lift Rack
Models
Volume
Approx. Capacity @ Working Pressure
Dimensions inch-cm LxDxH
Weight kg-lbs
ASCLR300-350

300 Liter (6×50 Liter)

105m3/3708cft@350bar/5000psi

135m3/4770cft@450bar/6500psi

29”-73×21”-54×77”-197

658-1448

847-1863

ASCLR600-350

600 Liter (12×50 Liter)

210m3/7416cft@350bar/5000psi

270m3/9540cft@450bar/6500psi

38”-96×30”-77×77”-197

1290 – 2838

1660 – 3652

Standard Features

  • Four Point Lift Rack
  • Construction Durable, steel frame
  • High pressure, Breathing air storage system with six (6) or twelve (12) 50 liter 350bar/5000psi, 400bar/5800psi or 450bar/6500psi (as option WP450) cylinders
  • Working Pressure 300bar/4350psi, 350bar/5000psi or 450bar/6500psi (as option WP450)
  • Test Pressure 525bar/7600psi or 675bar/9800psi
  • Pressure Equipment Directive PED CE certified
  • Seamless Steel Gas Cylinder according EN ISO 9809-2
  • High Pressure INOX Panel with connection G1/4“ or G3/8″
  • Safety Pressure Valve 320bar/4640psi, 370bar/5365psi or 470bar/6815psi (as otion)
  • Storage pressure gauge 0-450bar/6500psi (as option)
  • TÜV Certificate according EC Directive 97/23/EC regulations AD 2000
  • Modular system, available also in vertical 8 or 10 pack

Factory Options ASCLR300-350 and ASCLR600-350 Air Storage Cylinder Lift Racks

Models
Description
BSS

High Pressure INOX Filling Panel with connection G1/4“ or G3/8″

SV3/4

Safety Pressure Valve 320bar/4640, 370bar/5365psi or 470bar/6815psi

PG450

Storage pressure gauge 0-450bar/6500psi

SOV

Shut-off lever valve 500 bar

WP450

Working Pressure 450bar/6500psi, Design Pressure 500bar/7250psi

PR10-410

Pressure Reducer with Outlet Pressure setting range 10bar/120psi – 410bar/6000psi

OXY

Applications for Argon, Helium, Hydrogen, Methane, Nitrogen, Oxygen, Natural Gas
