High Pressure Storage Cylinder Lift Racks

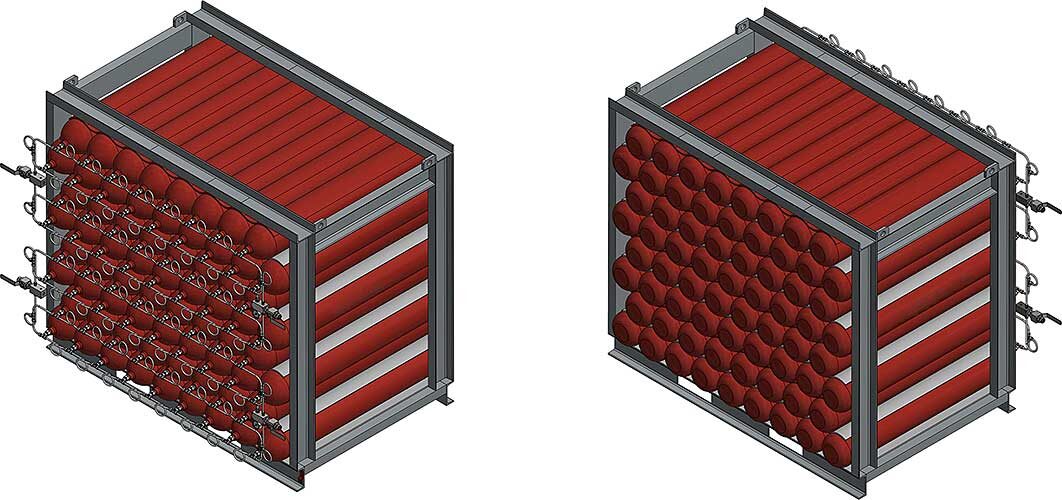

Air Storage Cylinder Lift Rack 3400 68×80 Liter

ASCLR3400-350 Air storage Lift Rack
Models
Volume
Approx. Capacity @ Working Pressure
Dimensions inch-cm LxDxH
Weight kg-lbs
ASCLR3400

3400 Liter (68×50 Liter)

1190m3/42024cft@350bar/5000psi

100″(220)x76”(167)x88.6”(195)

5165–11363

Standard Features

  • Storage Lift Rack Heavy Duty
  • Construction Durable, steel frame
  • High pressure, Breathing air storage system with sixty eight (68) 50 liter 350bar/5000psi cylinders
  • Working Pressure 350bar/5000psi, 400bar/5800psi or 450bar/6500psi (as option WP450) cylinders
  • Test Pressure 525bar/7600psi or 675bar/9800psi
  • Pressure Equipment Directive PED CE certified
  • Seamless Steel Gas Cylinder Steel cylinder according EN ISO 9809-2
  • High Pressure INOX Panels with connection G1/4“ or G3/8″
  • Safety Pressure Valve 370bar/5365psi, 420bar/6090psi or 470bar/6815psi (as otion)
  • Storage pressure gauge 0-450bar/6500psi (as option)
  • TÜV Certificate according EC Directive 97/23/EC regulations AD 2000
  • Modular system

Factory Options ASCLR3400 Air Storage Cylinder Lift Rack

Models
Description
BSS

High Pressure INOX Filling Panel with connection G1/4“ or G3/8″

SV3/4

Safety Pressure Valve 370bar/5365psi, 420bar/6090psi or 470bar/6815psi

PG450

Storage pressure gauge 0-450bar/6500psi

SOV

Shut-off lever valve 500 bar

WP450

Working Pressure 450bar/6500psi, Design Pressure 500bar/7250psi

PR10-410

Pressure Reducer with Outlet Pressure setting range 10bar/120psi – 410bar/6000psi

OXY

Applications for Argon, Helium, Hydrogen, Methane, Nitrogen, Oxygen, Natural Gas
