Open Stainless Steel Frame High Pressure Compressors


SeaComAir 140 – 265 Stainless Steel Frame Diesel

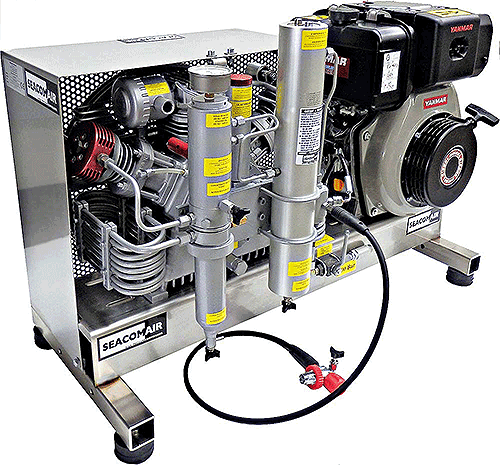

SCA265DY9OSS High Pressure Compressor
SCA265DY9OSS Diesel High Pressure Compressor
Models
Motor
Charging Rate*
Refill time*
Max. Pressure
Dimensions LxDxH
Weight
Noise
Open Frame

Diesel

L/min – scfm

Min

Bar – psi

inch – cm

kg – lbs

dB (ISO3746)

SCA140DY/6OSS

6HP Yanmar Diesel

150 – 6,5

12

340 – 5000

45”(114)x20”(50)x28”(71)

127 – 279

95

SCA265DY/9OSS

9HP Yanmar Diesel

315 – 14

6

340 – 5000

45”(114)x20”(50)x28”(71)

155 – 342

96

Standard Features

Specifications

  • Mounted on a free standing, shock mounted, heavy duty Stainless Steel Inox Frame
  • Large capacity moisture separators for hot and humid climates
  • Oil/water separating chambers (manual drains)
  • Breathing air purification system with activated carbon and molecular sieve
  • Meets or exceeds all international breathing air standards for CGA Grade“E” Air and DIN EN12021
  • Pressure maintaining/Priority back pressure valve
  • Pressure relief valve on all stages
  • Final pressure relief valve
  • Oil filled pressure gauge 0~400bar/5800psi
  • Two (2) High Pressure Filling hoses with On/Off filling valve and bleed, depressurize system, with SCUBA INT yoke, DIN200 or DIN300
  • Spare parts list and owners manual
  • Continuous duty air cooled, three stage three cylinder high pressure air compressor all stainless steel inter- and final-stage coolers
  • Max. RPM 1000 – 1550
  • Splash lubrication with oil thrower pin
  • Oil Capacity 1,7 Liter / 59 oz
  • Oil Type SeaComAir synthetic compressor oil ISO VG150

Factory Options

Models
Description
MP330

Compressor with 300bar/4350psi max. pressure

PAC300/100

Pressure Adapter 300-200bar/4400-3000 psi with MP330 only

BZTT100

Hour meter Digital

IH2/100

Intake Hose 6′

*Based on charging an 11 Liter / 80 Cu. Ft. Cylinder from 35 bar / 500 psi to 200 bar / 3000 psi

SeaComAir 140 – 265 Diesel Open Frame are continuous duty compressors.
