Open Stainless Steel Frame High Pressure Compressors


SeaComAir 140 / 215 / 265 Stainless Steel Frame Electric

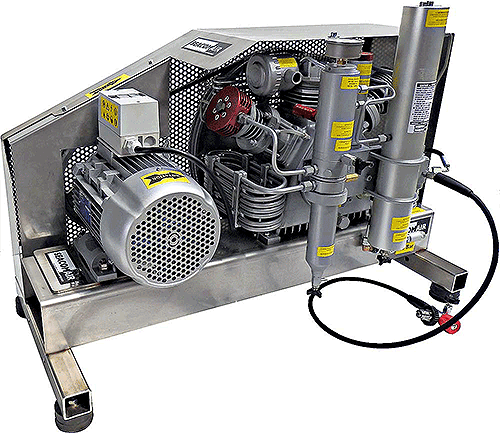

SCA215E4355OSS High Pressure Compressor
SCA140E21OSS High Pressure Compressor
Models
Motor
Charging Rate*
Refill time*
Max. Pressure
Dimensions LxDxH
Weight
Noise
Open Frame

Electric

L/min – scfm

Min

Bar – psi

inch – cm

kg – lbs

dB (ISO3746)

SCA140E21/4OSS

3kW 230V/50-60Hz 1ph

150 – 6,5

12

340 – 5000

39”(100)x20”(50)x28”(71)

110 – 242

81

SCA215E43/55OSS

4kW 230/400V 50-60Hz 3ph

240 – 10

8

340 – 5000

39”(100)x20”(50)x28”(71)

119 – 262

81

SCA265E43/75OSS

5,5kW 230/400V 50-60Hz 3ph

315 – 14

5,5

340 – 5000

39”(100)x20”(50)x28”(71)

125 – 275

82

Standard Features

Specifications

  • Mounted on a free standing, shock mounted, heavy duty Stainless Steel Inox Frame
  • Large capacity moisture separators for hot and humid climates
  • Oil/water separating chambers (manual drains)
  • Breathing air purification system with activated carbon and molecular sieve
  • Meets or exceeds all international breathing air standards for CGA Grade“E” Air and DIN EN12021
  • Pressure maintaining/Priority back pressure valve
  • Pressure relief valve on all stages
  • Final pressure relief valve
  • Oil filled pressure gauge 0~400bar/5800psi
  • Two (2) High Pressure Filling hoses with On/Off filling valve and bleed, depressurize system, with SCUBA INT yoke, DIN200 or DIN300
  • Spare parts list and owners manual
  • Electric motors with electrical control, ON/OFF Switch and cable
  • Continuous duty air cooled, three stage three cylinder high pressure air compressor all stainless steel inter- and final-stage coolers
  • Max. RPM 1000 / 1350 / 1550
  • Splash lubrication with oil thrower pin
  • Oil Capacity 1,7 Liter / 59 oz
  • Oil Type SeaComAir synthetic compressor oil ISO VG150

Factory Options

Models
Description
MP330

Compressor with 300bar/4350psi max. pressure

PAC300/100

Pressure Adapter 300-200bar/4400-3000 psi with MP330 only

HMAE100

Hour meter Analog

*Based on charging an 11 Liter / 80 Cu. Ft. Cylinder from 35 bar / 500 psi to 200 bar / 3000 psi

SeaComAir 140 / 215 / 265 Electric Open Frame are continuous duty compressors.

**32A 3P+E plug not supplied
