Compressed Natural Gas (CNG) Booster Compressors


SeaComAir 600 CNG Booster

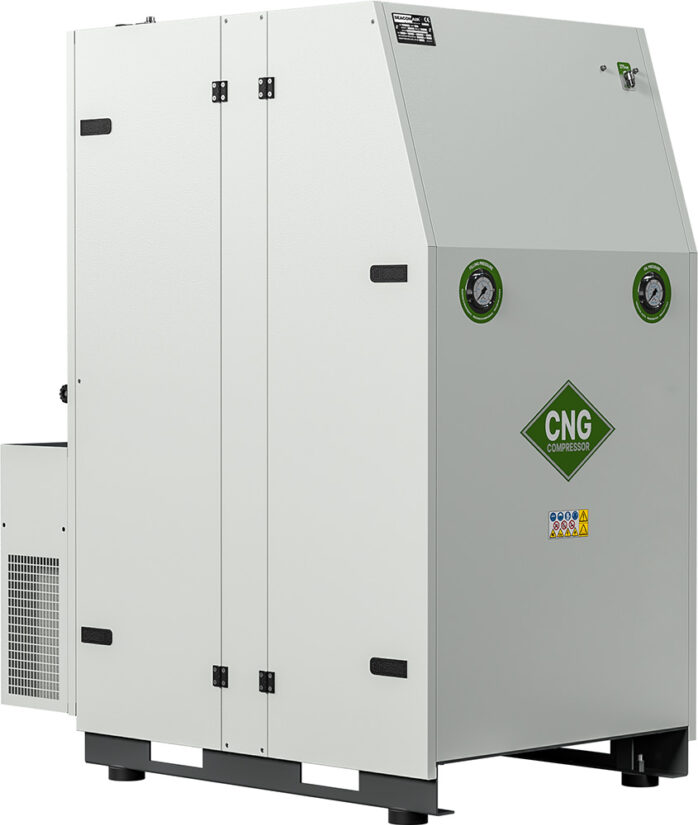

SCA60043 CNGB Booster compressor
SCA60043CNGB Booster compressor
Models
Motor
Charging Rate @ 5 bar
Inlet Pressure
Max. Pressure
Dimensions LxDxH
Weight
Noise
Natural Gas CNG

Electric

L/min – cfm

Bar -psi

Bar – psi

inch – cm

kg – lbs

dB (ISO3746)

SCA600E43/CNGB

15kW 400V/50Hz 3ph

690 – 24,4

2-5 / 29-72,5

250 – 3600

49”(124)x31”(79)x61”(155)

420 – 926

70

Standard Features

Specifications

  • Compressed Natural Gas Booster
  • Mounted in a plastic coated steel cabinet
  • Sound proofing system
  • Meets or exceeds all international Natural Gas standards ATEX 94/9/EC, PED 97/23/EC, Machine 98/37/EC
  • MECP Main Electric Control Panel with 5 meter electric cable
  • On/Off Switch, Emergency OFF switch
  • Inlet filter
  • Gas inlet low pressure switch
  • Hour meter
  • Antistatic Drive Belt
  • Suction valve to connect Natural gas
  • Interstage Safety Valve on 2ng stage
  • Final safety valve
  • Final Pressure Switch/Auto-Stop
  • External oil level sight glass indicator with oil drain
  • Oil Pressure gauge
  • Final recharge pressure gauge
  • Manual condensate drain
  • One air purification system with molecular sieve
  • Refill time 80 Liter / 560 Cu. Ft. Cylinder from 35 bar / 500 psi to 200 bar / 3000 psi approx. 20 minutes @ 5 bar inlet pressure
  • CNG Silent Booster compressor, Continuous duty air cooled, four stage four cylinder, all stainless steel inter- and final-stage coolers
  • Oil pump
  • Max. RPM 1150
  • Oil Capacity 4,5 Liter / 157 oz
  • Oil Type SeaComAir synthetic compressor oil ISO CE

Factory Options

Models
Description
NGV1

Refilling Nozzle natutral gas with NGV1

FH

High Pressure Filling Hose 4,5 m – 177 ft
