Compressed Natural Gas (CNG) Booster Compressors


SeaComAir 265 CNG Booster

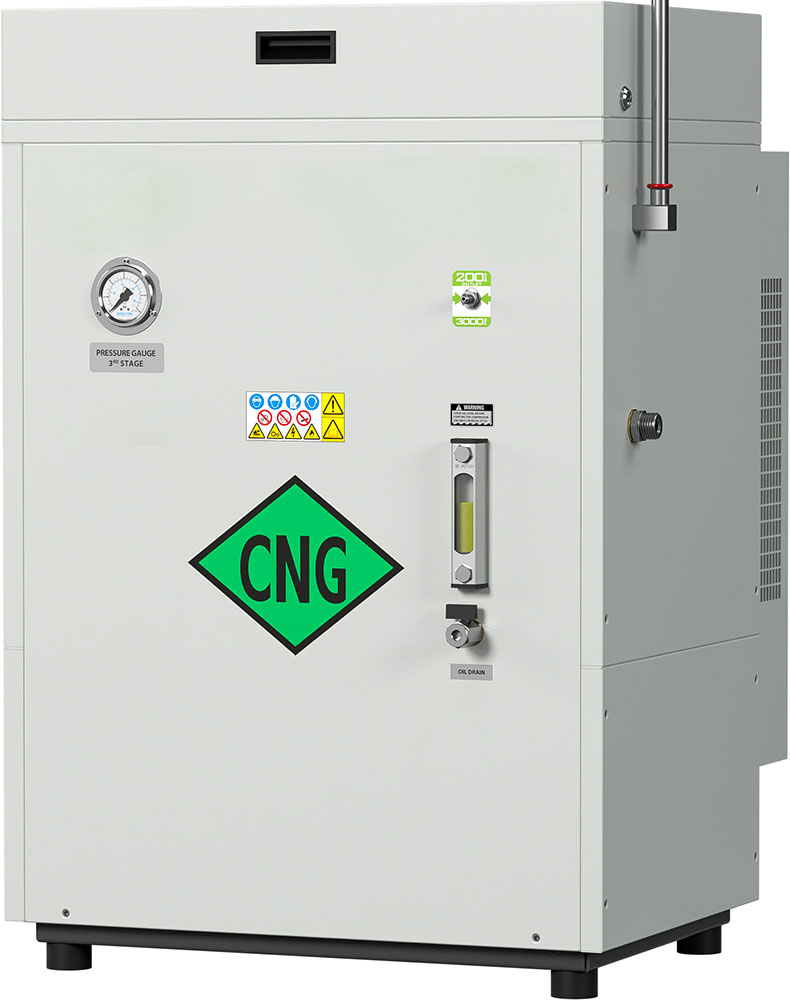

SCA265E43CNG booster compressor
SCA265E43CNG booster compressor
Models
Motor
Charging Rate @ 8 bar
Inlet Pressure
Max. Pressure
Dimensions LxDxH
Weight
Noise
Natural Gas CNG

Electric

L/min – cfm

Bar -psi

Bar – psi

inch – cm

kg – lbs

dB (ISO3746)

SCA265E43/CNGB

5,5kW 230/400V/50-60Hz 3ph

265 – 9,4

2-8 / 29-116

250 – 3600

27,5”(70)x26”(67)x43”(110)

180 – 396

87

Standard Features

Specifications

  • Compressed Natural Gas Booster
  • Mounted in a plastic coated steel cabinet
  • Sound proofing system
  • Meets or exceeds all international Natural Gas standards ATEX 94/9/EC, PED 97/23/EC, Machine 98/37/EC
  • MECP Main Electric Control Panel with 5 meter electric cable
  • On/Off Switch, Emergency OFF switch
  • Inlet filter
  • Gas inlet low pressure switch
  • Hour meter
  • Antistatic Drive Belt
  • Suction valve to connect Natural gas
  • Interstage Safety Valve on 2ng stage
  • Final safety valve
  • Final Pressure Switch/Auto-Stop
  • Oil level sight glass indicator
  • Final recharge pressure gauge
  • Manual condensate drain
  • External oil level sight glass indicator with oil drain
  • One air purification system with molecular sieve
  • Refill time 80 Liter / 560 Cu. Ft. Cylinder from 35 bar / 500 psi to 200 bar / 3000 psi 49 minutes @ 8 bar inlet pressure
  • CNG Silent Booster compressor, Continuous duty air cooled, three stage three cylinder, all stainless steel inter- and final-stage coolers
  • Splash lubrication with oil thrower pin
  • Max. RPM 1600
  • Oil Capacity 1,7 Liter / 59 oz
  • Oil Type SeaComAir synthetic compressor oil ISO CE

Factory Options

Models
Description
NGV1

Refilling Nozzle natutral gas with NGV1

FH

High Pressure Filling Hose 4,5 m – 177 ft
