Compressed Natural Gas (CNG) Heavy Duty Compressors

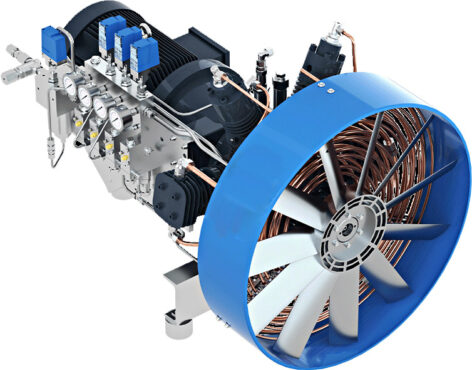

SeaComAir 1000 CNG Heavy Duty
Models | Motor | Charging Rate* | Refill time* | Inlet Pressure | Max. Pressure | Dimensions LxDxH | Weight |
|---|---|---|---|---|---|---|---|
Natural Gas CNG | Electric | L/min – cfm | Min | Bar – psi | Bar – psi | inch – cm | kg – lbs |
SCA1000E43/OF-CNG | 30kW 400V/50Hz 3ph | 1000 – 36 | 13 | 0,3 – 0,5 | 300 – 4350 | 62”(159)x40”(102)x43”(109) | 385 – 848 |
Standard Features
Specifications
- Free Air delivery 1000 l/min – 36 cfm – 62 m³/hr
- High efficient cooling, Cylinders directly in the cooling-air flow
- Low condensation temperatures
- Long service life of the valves
- Pressure switches at all pressure stages
- Maintenance free oil and water seperator
- Low maintenance cost
- Fine Filter at outlet
- Pressure Gauge after each pressure stage
- Oil Pressure Gauge
- Oil pressure lubrication with oil pressure control
- Full automatic condensate drain/discharge
- Energy efficiency IE3 el. Motor direct flanged
- Explosion proof AC motor 400/440 Volt, 3 phase, 50Hz/60Hz
- Electromagentic start discharge
- Continuous duty air cooled, Four stage, Four cylinder compressor, all stainless steel coolers
- Mounted on heavy duty Vibration free three point assembly
- Pressure oil lubrication
- Oil Capacity 14,5 Liter / 492 oz
- Compressor oil ISO VG150
- ATEX 94/9/EC and PED 97/23/EC approved
Factory Options
Models | Description |
|---|---|
HDF | Compressor with Heavy Duty Sound Isolation Frame |
SeaComAir 1000 OF Open Frame CNG Compressors are continuous heavy duty compressors for stationary operations
*Based on charging an 80 Liter / 560 Cu. Ft. Cylinder from 35 bar / 500 psi to 200 bar / 3000 psi
