Medium Duty Low Pressure Piston Direct Driven Air Compressor

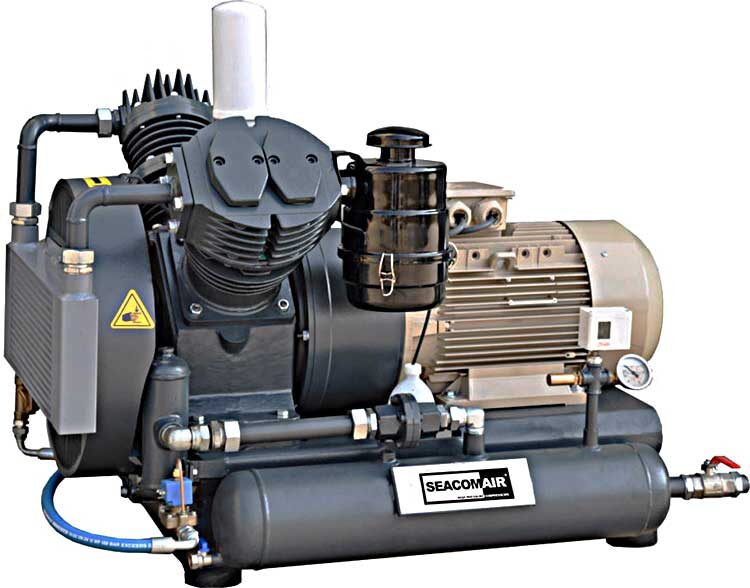

SeaComAir PH1600-40 Piston Compressor Electric
Models | Motor | Charging Rate | Max. Pressure | Dimensions LxDxH | Weight | Noise |
|---|---|---|---|---|---|---|
Low Pressure Piston | Electric | L/min - cfm - m³/hr | Bar - psi | inch - cm | kg - lbs | dB (ISO3746) |
SCA-PH1600-40 | 18,5kW 400V/50Hz 3Ph | 1600 - 56 - 96 | 40 - 580 | 29”(750)x50”(1280)x39”(1000) | 485 – 1067 | 94 |
Standard Features
Specifications
- Stationary Low Pressure Direct Driven Piston Compressor
- Capacity / Free Air delivery 1600 l/min
- Performance-optimized piston 2 Stage, 2 Cylinder
- High efficient cooling, Cylinders directly in the cooling-air flow
- Maximal pressure 40 bar/580 psi
- Automatic solenoid drain valve
- Long service life of the valves
- Long Inspection intervals
- Low maintenance costs
- Aluminum intercooler
- Oil lubrication with Oil sight glass
- Final Safety Pressure Valve and Adjustable Final Pressure Switch
- Final Pressure Gauge
- Electric Motor with thermal relay for engine, star/delta connection
- El Motor Energy efficiency IE3, Protection IP55
- Motor Directly Coupled to Compressor Block, Energy-efficient
- Flow and sound optimized Air Inlet Filter
- Electric Control Panel with Emergency Stop, Hour meter and Lights
- Owners manual
- Air cooled, Direct Driven, Two stage, Two cylinder compressor, with Aluminum cooler
- Ready mounted and wired on heavy duty base
- Vibration-free assembly
- Oil Capacity 5 Liter / 169 oz
- Compressor synthetic oil ISO VG150
- Pressure Outlet R1“
Factory Options
Models | Description |
|---|---|
GASUPG | Compressor upgrade Nitrogen |
SeaComAir Low Pressure Piston Compressors are industrial compressors for stationary operations.
