Booster Compressors

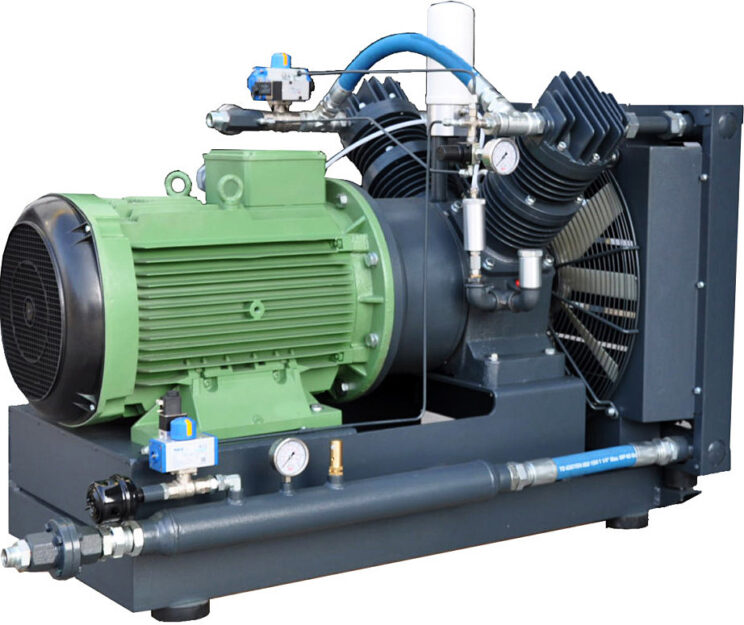

SeaComAir 8000 Booster Piston Compressor
Models | Motor | Inlet Pressure | Charging Rate @ 10 Bar Inlet | Max. Pressure | Dimensions LxDxH | Weight | Noise |
|---|---|---|---|---|---|---|---|
Booster | Electric | Bar - psi | L/min - cfm | Bar - psi | inch - cm | kg - lbs | dB (ISO3746) |
SCA-BW8000-40B | 30kW 400V/50Hz 3ph | 10-13/145-188 | 8000 - 10 | 40 - 580 | 61”(155)x35”(90)x43”(110) | 650 - 1430 | 94 |
Standard Features
Specifications
- Stationary Low Pressure Direct Driven Booster Compressor
- Capacity / Free Air delivery 8000 l/min @ 10 bar inlet pressure
- Performance-optimized piston 1 Stage, 2 Cylinder
- High efficient cooling, Cylinders directly in the cooling-air flow
- Special designated radiator for max cooling
- Maximal pressure 40 bar/580 psi
- Automatic solenoid drain valve
- Long service life of the valves
- Long Inspection intervals, Low maintenance costs
- Oil lubrication with Oil level gauge
- Final Safety Pressure Valve and Adjustable Final Pressure Switch
- Final Pressure Gauge
- Electric Motor with thermal relay for engine, star/delta connection
- El Motor Energy efficiency IE3, Protection IP55
- Motor Directly Coupled to Compressor Block, Energy-efficient
- Flow and sound optimized Air Inlet Filter
- Electric Control Panel with Emergency Stop, Hour meter
- Owners manual
- Air cooled, Direct Driven, One stage, Two cylinder booster compressor
- Ready mounted and wired on heavy duty base
- Vibration-free assembly
- Oil Capacity 5 Liter / 169 oz
- Compressor synthetic oil ISO VG150
- Pressure Outlet R1“
Factory Options
Models | Description |
|---|---|
GASUPG | Compressor upgrade for Nitrogen and Nitrox |
