Paintball High Pressure Compressors


SeaComAir 50 Lightweight, Portable Paintball Compressor

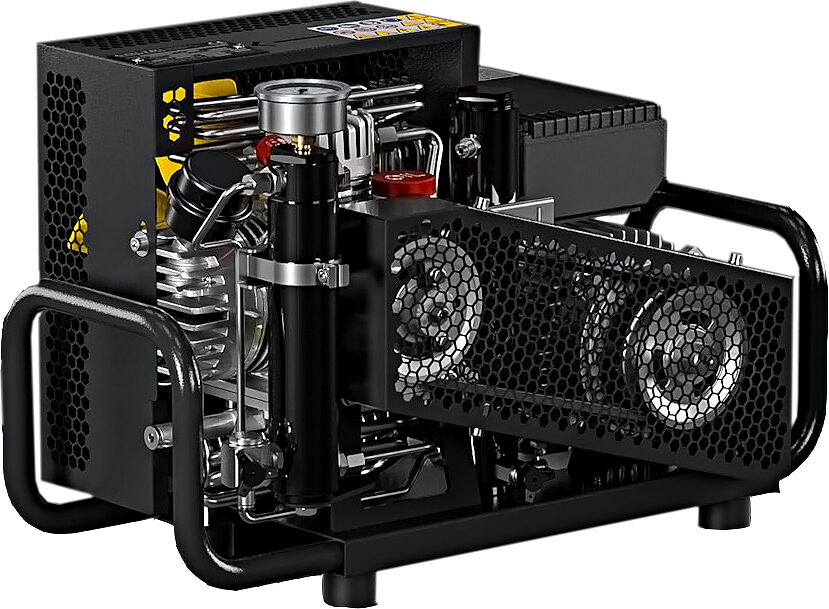

SCA50E212 Lightweight Portable Compressor
SCA50E212 Lightweight Portable Compressor
Models
Motor
Charging Rate*
Refill time*
Max. Pressure
Dimensions LxDxH
Weight
Noise
Portable

Electric

L/min - scfm

Min

Bar - psi

inch - cm

kg - lbs

dB (ISO3746)

SCA50E21/2

1,1kW 230V 50-60Hz 1ph

50 - 2,2

28

230 - 3335

27”(70) x 15”(38) x 15”(38)

30 - 66

68

Standard Features
Specifications
  • Mounted on a durable powder coated lightweight steel frame with carry handles
  • Compressor is desighn for filling Air Gun Cartridges
  • Suitable for filling Tanks/Cylinders with a maximum of 6 Liters / 40 Cu.Ft. Volume
  • Mounted on a durable powder coated steel frame with carry handles
  • Oil/water separating chambers (manual drains)
  • Breathing air purification system with activated carbon and molecular sieve
  • Priority/Back pressure maintaining valve which prolonged compressor life
  • Final pressure relief valve
  • Hour Meter Analog
  • Oil filled pressure gauge 0~400bar/5800psi
  • One (1) Filling hose with On/Off valve and bleed, depressurize system, with DIN200
  • Electric motors with electrical control, ON/OFF Switch and cable
  • Air cooled, three stage, three cylinder High pressure compressor all stainless steel inter-, final stage coolers
  • Max. RPM 2240
  • Splash lubrication with oil thrower pin
  • Oil Capacity 0,4 Liter / 13,5 oz
  • Oil Type SeaComAir synthetic compressor oil ISO VG190

Factory Options

Models
Description
ASP100

Auto Stop/Shut off pressure switch

ACD100

Automatic condensate drain

SSF

Compressor with INOX Stainless Steel Frame

*Based on charging an 6 Liter / 40 Cu. Ft. Cylinder to 230 bar / 3335 psi

SeaComAir 50 Lightweight Electric portable is non-continuous duty compressor
