Cabinet Semi-Enclosed High Pressure Compressors

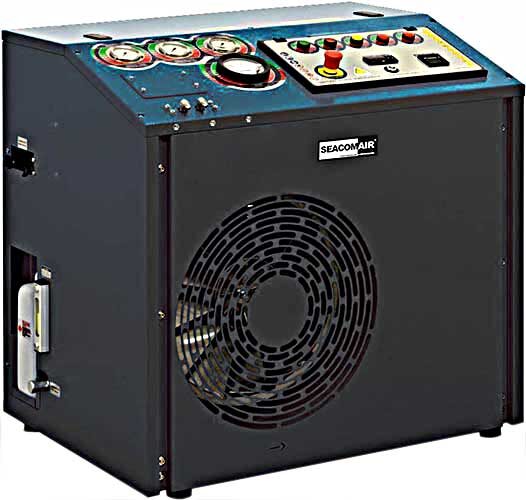

SeaComAir 265CFSF3 Cabinet Electric
Models | Motor | Charging Rate* | Refill time* | Max. Pressure | Dimensions LxDxH | Weight | Noise |
|---|---|---|---|---|---|---|---|
Cabinet | Electric | L/min - scfm | Min | Bar - psi | inch - cm | kg - lbs | dB (ISO3746) |
SCA265E43/CFSF3 | 5.5kW 230/400V/50-60Hz 3ph | 315 - 14 | 5,5 | 340 - 5000 | 35″(90)x24″(60)x33,5″(85) | 145 - 330 | 81 |
Standard Features
Specifications
- Durable powder coated, compact cabinet for stationary operation
- Fully Automatic HP Compressors
- Main control panel
- Fully automatic condensate drain
- Final pressure switch with auto shut-off and pressure gauge
- Hour meter
- Low oil shut down switch
- Cabinet High temperature shut down switch
- Interstage Pressure Gauges (3 pcs)
- Oil filled final pressure gauge 0~400bar/5800psi
- Breathing air purification system with activated carbon and molecular sieve
- Meets or exceeds all international breathing air standards for CGA Grade“E” Air and DIN EN12021
- Pressure relief valve on all stages
- Final pressure relief valve
- External oil level sight glass indicator with oil drain
- Two (2) High Pressure Filling hoses with On/Off filling valve and bleed, depressurize system, with SCUBA INT yoke, DIN200 or DIN300
- Spare parts list and owners manual
- Continuous duty air cooled, three stage three cylinder high pressure air compressor all stainless steel inter- and final-stage coolers
- Max. RPM 1550
- Splash lubrication with oil thrower pin
- Oil Capacity 2 Liter / 67 oz
- Oil Type SeaComAir synthetic compressor oil ISO VG150
Factory Options
Models | Description |
|---|---|
MP330 | Compressor with 300bar/4350psi max. pressure |
PAC300/100 | Pressure Adapter 300-200bar/4400-3000 psi with MP330 only |
PCSD200 | Filter control system with LED indicator of filter cartridge saturation |
*Based on charging an 11 Liter / 80 Cu. Ft. Cylinder from 35 bar / 500 psi to 200 bar / 3000 psi
SeaComAir 265CFSF3 Cabinet Compressor is an continuous duty compressor for stationary operations.
