Heavy Duty Open Frame High Pressure Air Compressor-System


SeaComAir 2800 Open Frame System Electric

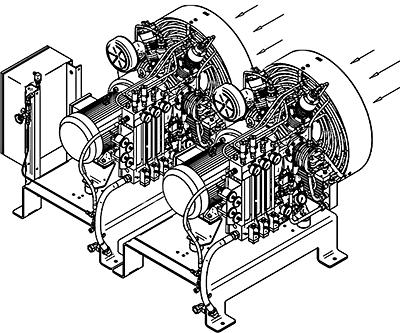

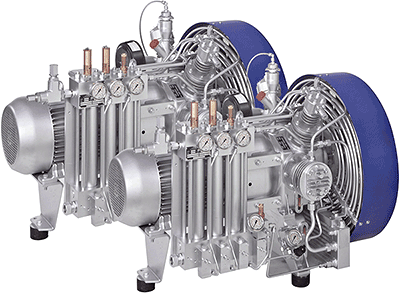

SCA2800OFS-350 Heavy Duty HP Compressor System
SCA2800OFS-350 Heavy Duty HP Compressor System
Models
Motor
Charging Rate*
Refill time*
Max. Pressure
Dimensions LxDxH
Weight
Noise
Heavy Duty Open Frame

Electric

L/min – scfm –  m³/hr

Min

Bar – psi

inch – cm

kg – lbs

dB (ISO3746)

SCA2800E43/OF-350

2x37kW 400V 50Hz 3ph

2800 – 99 – 168

1,3

350 – 5080

122”(310)x90”(230)x45”(115)

850 – 1870

91

Standard Features

Specifications

  • Free Air delivery/Capacity 2800 l/min / 99 cfm / 168 m3/h
  • Compressor System consist from two (2) heavy duty compressors, with compressor capacity 1400 l/min, total 2800 l/min @ 350 bar
  • Advantage of such system: when one compressor in maintenance mode or faulty, compressor system will work continuously with 50% load 1400 l/min @ 350 bar
  • High efficient cooling, Cylinders directly in the cooling-air flow
  • Low condensation temperatures
  • Long service life of the valves
  • Long inspection intervals 2000 hours
  • Low maintenance costs
  • Maintenance-free oil- and water-seperator
  • Oil-pressure-lubrication with oil-pressure-control
  • Oil-pressure-controlled automatic discharge
  • Pressure relief valves at all stages
  • Interstage Pressure Gauges after each stage
  • Energy efficient IE3 el. Motors
  • Motors Directly Coupled to Compressor Blocks, Energy-efficient
  • Elastic coupling for smooth start
  • End-temperature-control
  • Flow and sound optimized Air Inlet Filter
  • Electric Control Panel with necessary Standard Control, On/Off Switch, Hour Meter
  • Continuous duty air cooled, four stage, four cast iron cylinders each compressor, all stainless steel coolers
  • Mounted on heavy duty frame
  • Max. RPM 1500
  • Pressure oil lubrication
  • Oil Capacity 2×9,5 Liter (2×321 oz)
  • Compressor oil ISO VG150
  • Vibration-Free assembly
  • Electromagentic start discharge
  • Ready mounted and wired on heavy duty steel base

Factory Options

Models
Description
HDF

Compressor with Heavy Duty Sound Isolation Frame

GASUPG

Compressor upgrade for Gases such Argon, Helium, Nitrogen

*Based on charging an 11 Liter / 80 Cu. Ft. Cylinder from 35 bar / 500 psi to 350 bar / 5080 psi

SeaComAir 2800 Electric Open Frame are continuous duty compressors.

**32A 3P+E plug not supplied
